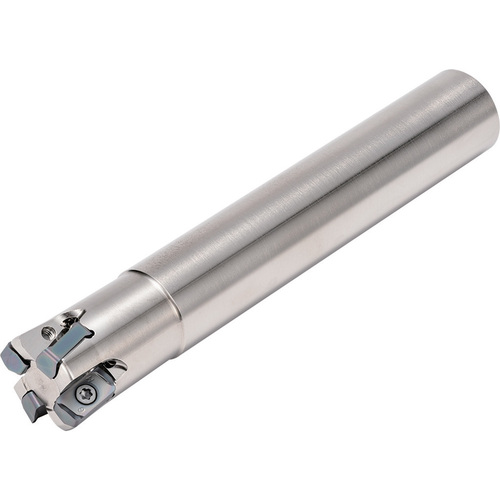

MFH-RAPTOR MINI 1 EM
Alternate Manufacture # MFH1000S100034T7

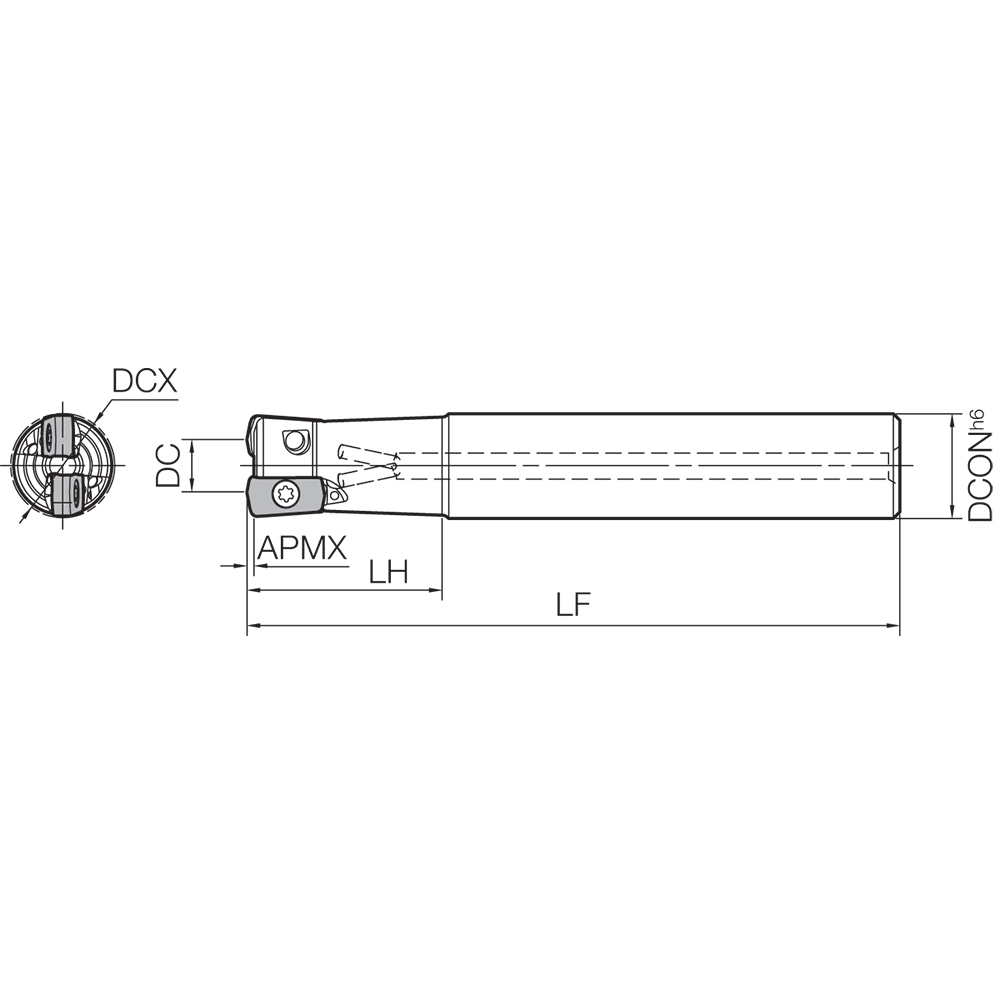

| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 4″ |
| Cutting Diameter (DC) | 1″ | Tool Type | High Feed End Mill |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 7″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Style | MFH |
| Ramping Angle Maximum (RMPX) | 1.2 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Helical Milling | Plunging | Angle | 10 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Series/List # | MFH-RAPTOR Mini |
| Master Insert Identification (MIID) | LOGU030310ER-GM | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # MFH1000S100034T7 | Country of Origin | Japan |
Shipping Info
Package Weight
1.95
