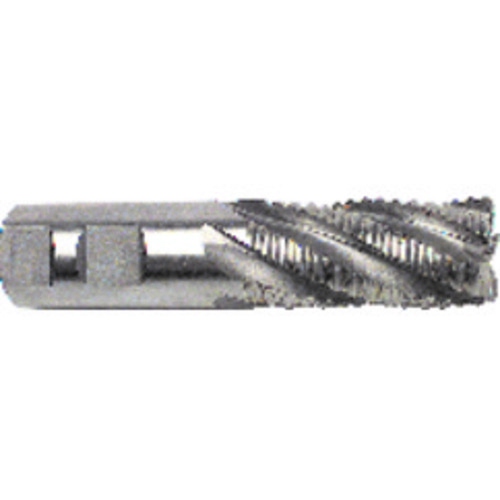

5/8″ × 5/8″ × 1 5/8″ × 3 3/4″ 4 Flute Single End HSSCo Roughing Center Cutting End Mill-Uncoated Series/List #4611
SQ End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 3-3/4″ OAL ; 4 FL ; HSSCo ; Uncoated ; Series 4611
| Cutting Diameter (DC) | 5/8″ | Application | Roughing |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Length Group | Regular |
| Overall Length (OAL) | 3-3/4″ | Flute Type | Coarse Pitch |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Roughing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 4611 |
| Usable Length (LU) | 1-5/8″ |
Product Features
| Remarks | •M-42 8% Cobalt Coarse Tooth Roughing End Mills •Center Cutting 30° Helix •Designed to machine low alloy, high strength steels at faster feed and speed rates • Premium cobalt high speed steel with special heat treatment offering longer tool life • TiN Coating allows increased feeds over uncoated end mills • The high lubricity of TiN improves chip flow, resists galling and edge build up and reduces heat generated in the metal removal process •TiN coating is ideal for a wide range of applications where improved tool life and elevated feeds and speeds are required. | Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Length
4.30000
Package Width
1.30000
Package Weight
0.278
