16IR 14NPTF AC22A

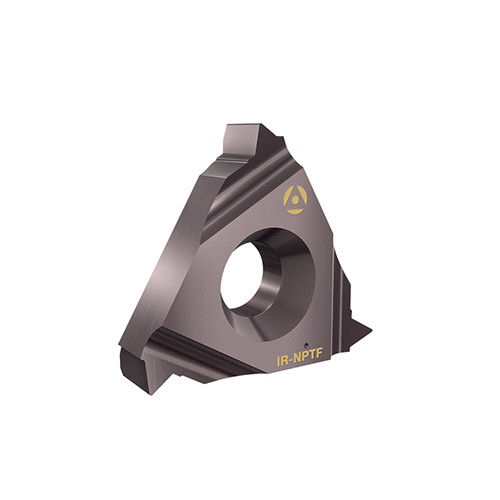

Internal Right Hand NPTF (National Pipe Threads) Full Profile Laydown Threading Inserts for Steam, Gas and Water Pipes
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 | Shape | Triangle |
| Corner Radius (RE) | 0.0016″ | Threads per Inch Minimum (TPIN) | 14 |
| Grade | AC22A | Threads per Inch Maximum (TPIX) | 14 |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | NPTF60 |
Product Features
| Family Description | Internal Right Hand NPTF (National Pipe Threads) Full Profile Laydown Threading Inserts for Steam, Gas and Water Pipes | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
