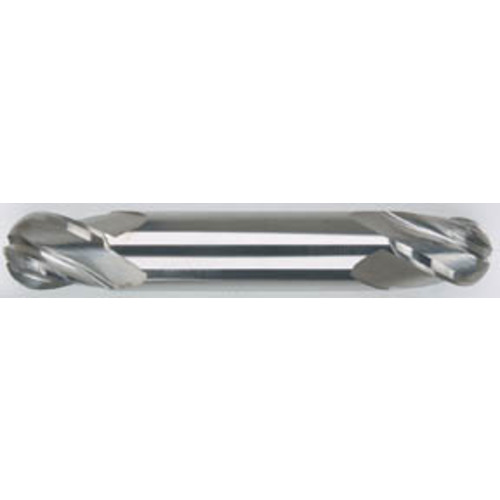

5949 3/32 × 1/8 4FL DE

Item # MT3258356

UNSPSC: 27112803

Brand: Morse Cutting Tools

MFG#: 58356

UPC #: 01026740 | 68612558356 | 686125583569

Quantity Available

Cutting Diameter (DC)

3/32″

Tool Type

Double End

Connection Diameter Machine Side (DCONMS)

1/8″

Length Group

Stub

Depth of Cut Maximum (APMX)

3/16″

End Shape

Ball Nose

Overall Length (OAL)

‎1-1/2″

Coolant Supply Property (CSP)

External

Cutting Edge Material

Carbide

Style

Finishing

Coating

Uncoated

Decimal Equivalent

0.0938″

Flute Count (NOF)

Measurement Type

Inch

Flute Helix Angle (FHA)

30 Degrees

Series/List #

5949

Shank Type

Round

Center Cutting

Yes

Usable Length (LU)

3/16″

Product Features

Remarks

4-Flute Stub Length Ball Nose Double End Mills• Ball Nose end mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots• 4-flute end mills with a greater core thickness offer increast tool strength and reduces tool deflection. 4-Flutes also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish• Center Cutting end allows for pluge cutting like a drill into solid materials

Country of Origin

USA

Shipping Info

LocalField10

Package Length

4.00000

Package Width

.37500

Package Height

.37500

Package Weight

0.015
