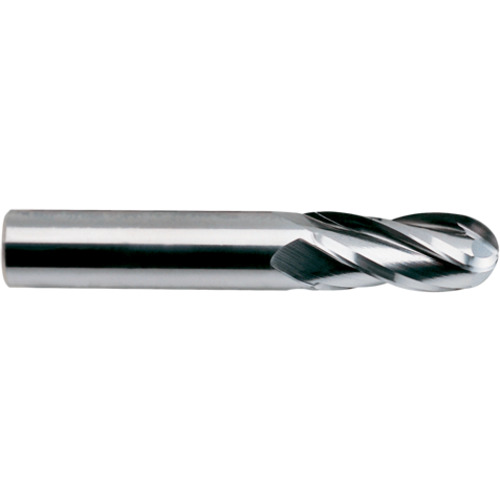

3/16X 2 4F BN SC FUT
| Cutting Diameter (DC) | 3/16″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 3/32″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Length Group | Regular |
| Overall Length (OAL) | 2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1875″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E5250 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 5/8″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
LocalField10
0
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.04
