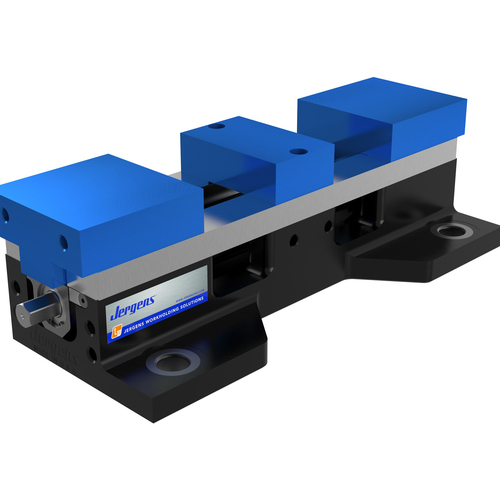

100 mm Ball Lock Production Vises
Additional Canadian Tariff of 25 %
| Type | Ball Lock Production Vises | Compatible With | Jergens Ball Lock Quick Change Mounting System, Jergens Ball Lock subplates |
| Jaw Width | 100 mm | Base Width | 200 mm |
| Jaw Depth | 30 mm | Base Height | 85.6 mm |
| Jaw Height | 30 mm | Weight | 14 kg |
| Jaw Opening Capacity | 176 mm | Maximum Clamping Force | 3,250 kgf |
Product Features
| Remarks | •Fastest quick, change jaw system. •Full Jaw travel. •Hardened and ground stainless steel wear rails. •Hard coated machined aluminum base. •Full sealed lead screw assembly. •Openings allow chips to flow out of the vise. •Supplied with machinable soft jaws. •Available with hard jaws. •Self Centering or Hydraulic operation available. | Country of Origin | USA |
Shipping Info
Package Weight
28.9
